Product Introduction

Application Scenarios

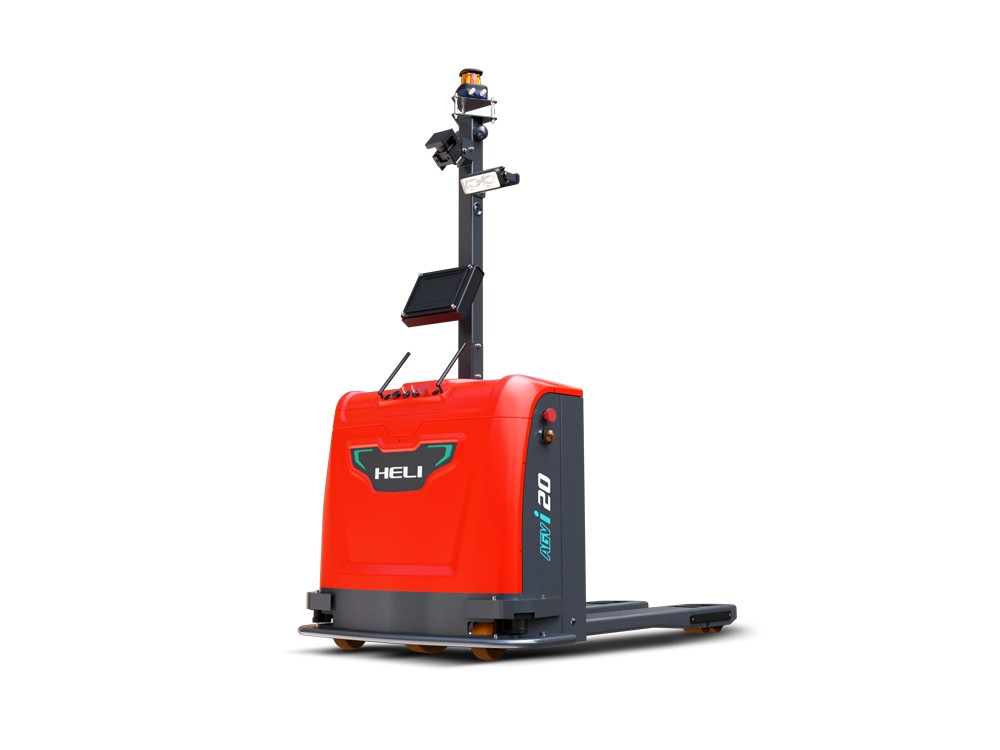

Handling AGV is commonly used for point-to-point transfer of materials between the ground level warehouse and the production line and the different processes of the production line.

Product Features

▪ Optional SLAM or laser navigation mode;

▪ Specialized AGV with a flexible and compact body;

▪ Load capacity range 0.5-3t;

▪ Repeatability accuracy up to ±5mm;

▪ Multiple protections, safe and intelligent.


Performance Parameters

Product ModelUnitCBD15-AGV4B1LICBD20-AGV4B1LICBD20-AGV4C1LICBD20-AGV41ALICBD20-AGV11ALICBD30-AGV11ALI
Type/Carrying Type
Navigation Method/SLAMSLAMLaser
Rated Loadkg150020002000200020003000
Maximum Lifting Height
205
Maximum Traveling Speed (Full Load/No Load)km/h5/54/4
Minimum Turning Radiusmm145315032306186518652264
Right Angle Stacking Width (1000*1200 Pallet)mm222022703920 (2000*2000 Pallet)277025892993
Positioning Accuracymm±5
Communication Method/5G/WIFI
Battery Capacity (Standard)V/Ah48/4024/20224/20224/272
Vehicle Weight (Including Battery)kg420450560830830830
Standard Vehicle Dimensions (L*W*H)mm1644×932×19041644×932×19042494*1286*19041992×955×19302034×955×20452034×955×2045
