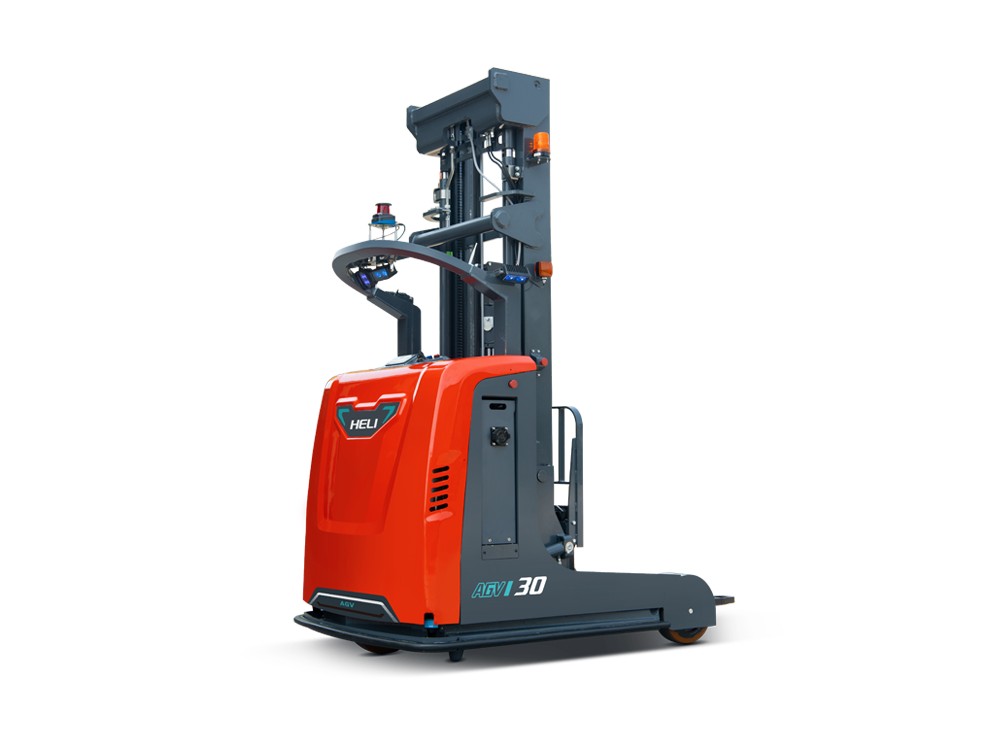

微信图片_20251020165136_172_15

Product Introduction

Application Scenarios

Forward-moving AGVs are commonly used for high-level, dense storage of materials in factories, e-commerce warehouses, and logistics centers.

Product Features

▪ Laser navigation, with repeatability accuracy up to ±5mm

▪ Compact body, occupying less aisle space

▪ Multiple load capacities available: 1-3.5t

▪ High-capacity lithium battery, long battery life

▪ Excellent high-level load-bearing capacity, lifting height up to 10m

▪ Full AC motor control, high efficiency

▪ Optional automatic fork distance adjustment, adaptable to various types of pallets

▪ Multiple protections, intelligent safety


Performance Parameters

Product ModelUnitCQD16-AGV1B1LICQD20-AGV1B1LICQD25-AGV11C1LICQD30-AGV11C1LI
Type/Forward
Navigation Method/Laser
Rated Loadkg1600200025003000
Maximum Lifting Heightmm10000100001000010000
Maximum Travel Speed (Unloaded/Loaded)km/h7/77/77/77/7
Minimum Turning Radiusmm1673174518451925
Right Angle Stacking Width (1200*1200 Pallet)mm2791284829563002
Positioning Accuracymm±5
Communication Method/5G/WIFI
Battery Capacity (Standard)V/Ah48/20248/28080/20280/280
Vehicle Weight (Including Battery)kg3820384644004660
Standard Vehicle Dimensions (L*W*H, Including Forks)mm2250×1360×26112293×1360×26112458×1438×21852458×1438×2185
