Product Introduction

微信图片_20251021103436_200_15

微信图片_20251021103448_201_15微信图片_20251021103456_202_15

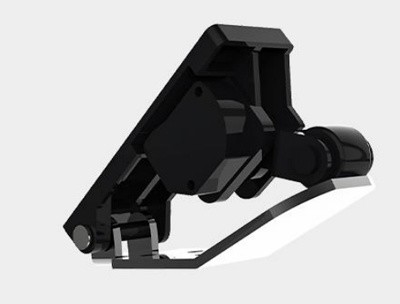

Engineering Vehicle Accelerator

Uses German MICRONAS888 chip, built-in anti-runaway function, stable performance, and higher overall vehicle safety.

Spring Shock Absorber

Uses a floating piston alloy steel spring with powder coating, effectively reducing the amplitude of mechanical structural resonance. Avoids structural damage caused by kinetic energy reaching its limit, extending equipment life and increasing driving comfort.



微信图片_20251021103505_203_15微信图片_20251021103513_204_15

Stainless Steel High-Pressure Wash Gun

Standard configuration uses a stainless steel high-pressure wash gun design, making cleaning of the garbage bin and side brushes easier and more convenient.

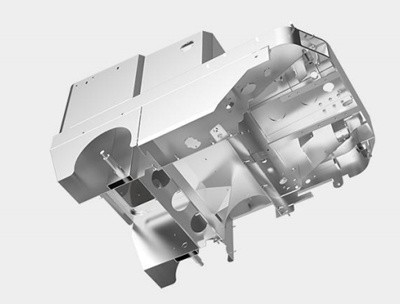

All-Stainless Steel Chassis

Heli is the industry's first equipment supplier to use "all-stainless steel" material to build washing/sweeping machines. All products use a stainless steel chassis.

微信图片_20251021103522_205_15微信图片_20251021103531_206_15

Imported Material Coverings

All product coverings are made of imported linear low-density polyethylene (PE) material.

Skeleton Oil Seal

Professional fluoroelastomer skeleton oil seal prevents dust, dirt, and contaminants from entering, effectively protecting the bearing service life



Performance Parameters

Name

Parameter Value/Specification

Vehicle Model

R-S1400

Sweeping Width

1400mm

Main Brush Size

690*300mm

Work Efficiency

0-9800m²/h

Travel Speed

0-7km/h

Water Tank Capacity

90L

Dustbin Capacity

100L

Working Time

4-5H

Side Brush Diameter

500mm*2

Vacuum Filtration Area

4.2m²

Tire Model

Front 300*100mm Rear 300*100mm Solid Tire

Braking System

Mechanical Brake + Electronic Brake + Anti-rollback

Battery Type

Lead-acid maintenance-free/Lithium battery

Battery Capacity

48V/100Ah

Drive Motor

48V/1000W

Main Brush Motor

48V/950W

Side Brush Motor

48V/90W*2

Push Rod Motor

48V/20W*2

Electric Dust Removal

48V/120W

Blower

48V/95W

Vehicle Weight

430KG

Vehicle Dimensions

1740*1400*1316mm

Packaging Dimensions

1800*1267*1511mm

Minimum Turning Radius

580mm
