Product Introduction

微信图片_20251021102449_193_15



微信图片_20251021102822_194_15微信图片_20251021102833_195_15

Ground Fault Circuit Interrupter

Effectively protects the motor from overload, enhancing motor lifespan. The open design allows for easy observation.

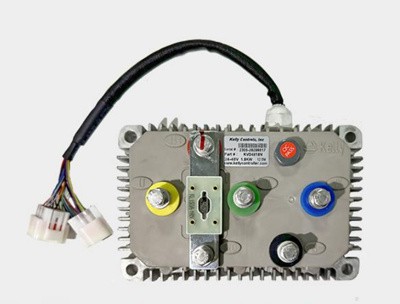

Kelly Controller

Uses automotive-grade Infineon CPU and internationally advanced MOSFET devices. It is certified to IATF16949 automotive quality management system standards, improving vehicle stability and range.


微信图片_20251021102842_196_15微信图片_20251021102849_197_15

Imported Material Cover

All product covers are made of imported linear low-density polyethylene (PE).

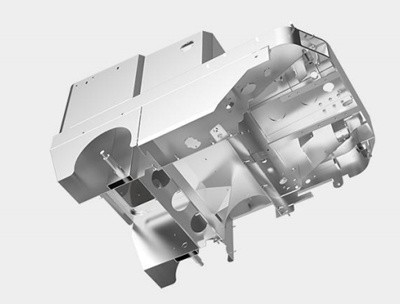

All Stainless Steel Frame

HeLi is the industry's first equipment supplier to use an "all stainless steel" material for its washing/sweeping machines. All products use a stainless steel chassis.


微信图片_20251021102903_198_15

微信图片_20251021102914_199_15

High-Pressure Washing Device

Equipped with a stainless steel high-pressure washing device, making cleaning the garbage bin and side brushes easier and more convenient.

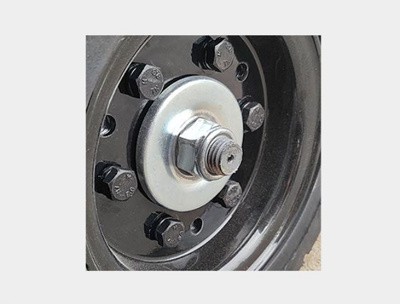

Dust Cover

One-piece stamped dust cover with galvanized rust-proof treatment, highly effective dust prevention, prevents corrosion from external harmful substances, and extends the bearing service life.



Performance Parameters

Name

Parameter Value/Specification

Vehicle Model

R-S1100

Sweeping Width

1100mm

Main Brush Size

490*300mm

Work Efficiency

0-6600m²/h

Travel Speed

0-6km/h

Water Tank Capacity

60L

Dustbin Capacity

75L

Working Time

2-2.5H

Side Brush Diameter

460mm*2

Vacuum Filtration Area

4.2m²

Tire Model

Front 250*65mm Rear 250*70mm Solid Tire

Braking System

Mechanical Brake + Electronic Brake + Anti-rollback

Battery Type

Lead-acid maintenance-free/Lithium battery

Battery Capacity

48V/50Ah

Drive Motor

48V/800W

Main Brush Motor

48V/650W

Side Brush Motor

48V/90W*2

Push Rod Motor

48V/20W*2

Electric Dust Removal

48V/120W

Blower

48V/95W

Vehicle Weight

320KG

Vehicle Dimensions

1569*1114*1327mm

Packaging Dimensions

1660*980*1475mm

Minimum Turning Radius

260mm
